55ACi Deluxe Sump Pump Dual Battery Backup System (MET20373)

55ACi Deluxe Dual Sump Pump Battery Backup System (MET20373)

Ion Backup Systems
SKU:
MET20373
$3,230.64
$5,128.00
(You save $1,897.36 )
Bulk Pricing:

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 3 or above and get 3% off
(No reviews yet)
Weight:
50.00 LBS
Current Stock:
Adding to cart… The item has been added
Description

55ACi Deluxe Sump Pump Battery Backup

Dual Pump Battery Backup AC System

  • Two 1/2 HP sump pumps with stainless steel and cast iron construction. Engineered for primary and battery backup with steady AC power using household or auxiliary supply.

  • Alternates pump runs with continued availability during power loss. Redundancies in pumping and level sensing further offsets possible disruption from irregularities.

  • Advanced battery backup converts stored DC power (using two 12-volt AGM batteries, available separately) into AC power for supplying emergency pump runs during outages.

  • Rated at 65 GPM pumping capacity (at 10' of head). Preserves peak performance without gradual loss while continuing to operate from either AC electric supply source.

  • The included Ion Genesis monitors pumping and application conditions with real-time alarm availability. Controls and alternates pumps without moving parts or contact points.

Overview

The Ion 55ACi Deluxe is an advanced dual sump pump system with both primary and advanced battery backup capabilities. The system features two identical 1/2 HP stainless steel and cast iron sump pumps engineered for automatic alternation each cycle during operation as a regular, everyday primary or during power outages via battery backup.

Rated at 65 GPM of pumping capacity (at 10 feet of total dynamic head), the 120 volt system pumps runs on standard AC electricity from one of two power sources. In absence of utility power supply, an individual pump runs on emergency AC power converted from deep cycle battery (two 12-volt Power+ AGM recommended, separate purchases). While conventional DC backup systems gradually pump less water the longer an outage continues, the Ion 55ACi Deluxe maintains peak pumping capacity while operating to meet or exceed demand.

When connected to utility power supply, the durable cast iron high-capacity pumps are available for operating as alternating primaries. The system is designed to only consume battery in absence of main supply via utility power. By avoiding unnecessary depletion, the battery stays at 100 percent for whenever the next outage may occur.

Further enhancing pump reliability is the solid-state digital level sensing equipped with the Ion Genesis controller, which comes standard with the Ion 55ACi Deluxe. The stationary level sensing operates without moving parts and contact points, and comes integrated with a high water alarm. Its proprietary solid-state sensing technology, first introduced with the original Ion Switch in 2010, has become the proven replacement for mechanical switches commonly attributed to pump failures and unnecessary flooding.

System Features

  • 1/2 HP pump with PSC, energy efficient motor: 5.8 amps

  • Rated at 65 GPM pumping capacity, at 10′ of total dynamic head

  • Fully automatic, converts 12 volt DC to 120 volt AC when utility power is lost

  • Runs off 120-volt AC power from available utility supply or reserved battery backup auxiliary supply

  • Inverter has digital display, tells status of system at all times

  • Uses two 12 volt deep cycle AGM batteries (add as option)

  • Non-corrosive battery enclosure

  • Includes piggyback Ion+ Digital level control/alarm sensor with no moving parts

  • First of its kind solid-state sensing technology with no moving parts

  • Multipoint sealing mechanism that supersedes single surface seals

  • Quick and easy installation

  • 3 year warranty





Ion Genesis Pump Controller Features and Functions

Ion Genesis Close Up

  1. LED Indicators:
    Displays pump(s), power, and alarm statuses.

  2. LCD Screen:
    Shows equipment data and alarm notifications.

  3. Plug & Play Outlets:
    Pump(s) plug into controller in place of wall outlet.

  4. Ion® Digital Level Sensor:
    Communicates water levels to controller.

  5. Ion Digital High Water Sensor:
    Detects high water and functions as secondary level sensor in case primary sensor fails.

  6. Remote Alarm Contact:
    Connects to an external property security system.

  7. Silence/Reset:
    Test run pump(s) without having to access basin.

  8. On Level:
    Manually adjust pumping turn on level from 2.5” to 72” in 0.5” increments.

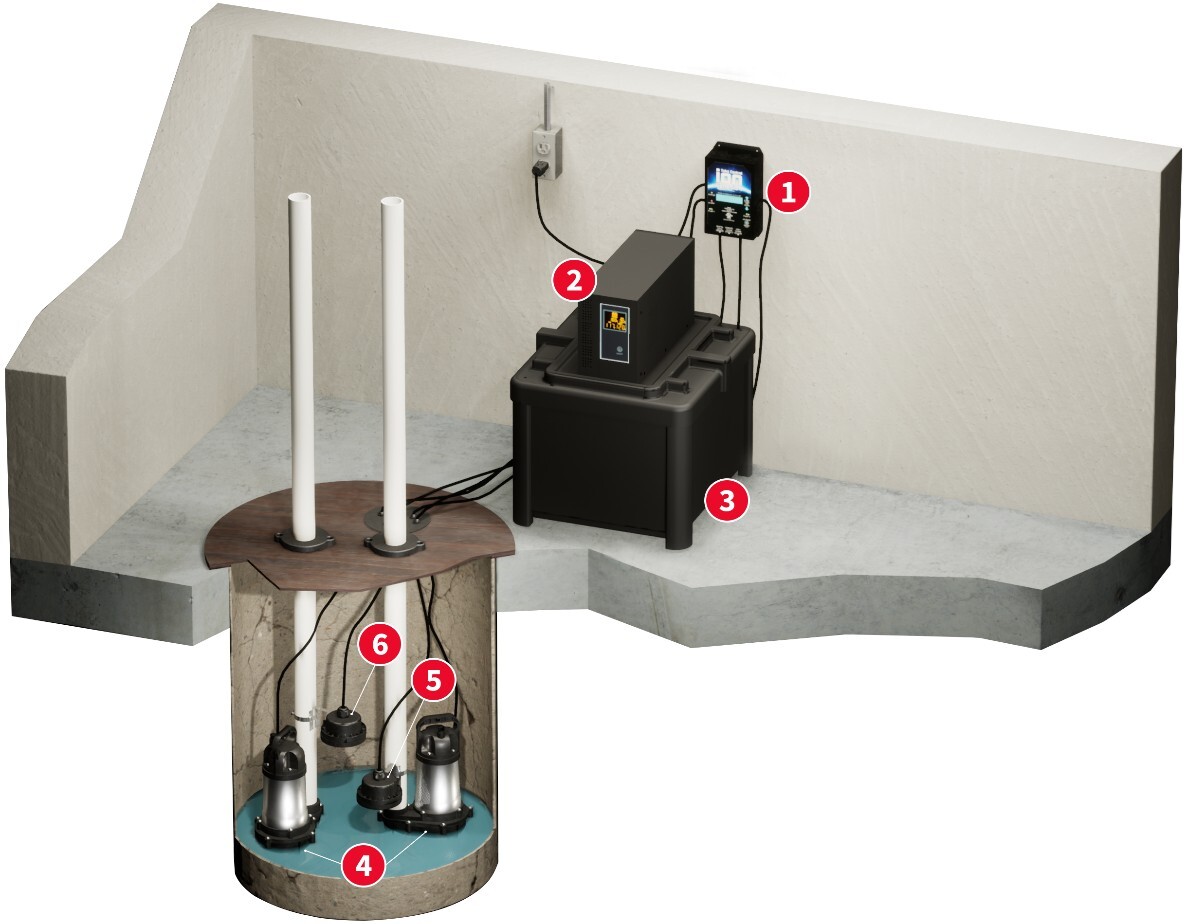

 Installation Diagram

55ACi Deluxe Installation Diagram

Included with System

  1. Ion Genesis controller and alarm

  2. Power inverter/battery charger

  3. Battery box

  4. Ion BA50i sump pumps

  5. Level control sensor

  6. High water alarm sensor (and redundant level control)

Supplemental Details

  • Accommodates installations in sump pits with minimum 18″ diameter and 24″ depth

  • Pairs with two 12-volt AGM batteries (available separately) for powering emergency pump runs































Performance Curves

Pump Performance
Operation as a Primary or Backup Pump

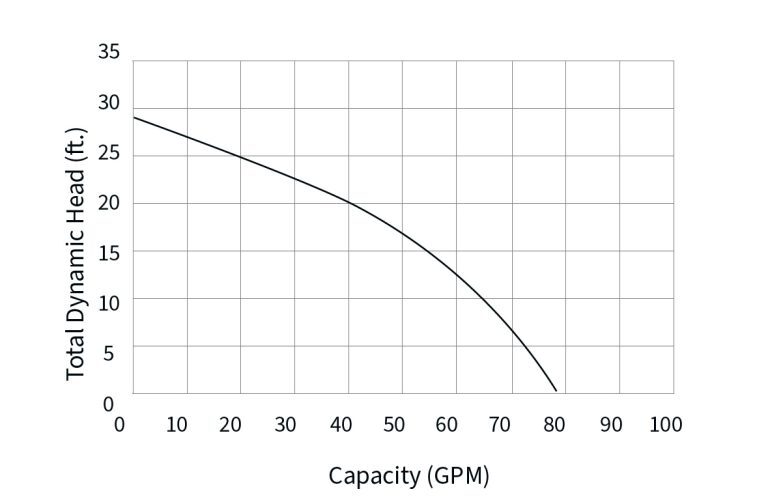

BA50 Sump Pump Performance Curve
System Performance
Using Battery Backup Auxiliary AC Power

55ACi Performance Curve
Warranty
3 Year
