SH50i 1/2 HP Sump Pump w/ Level Control (MHP20399)

SH50i 1/2 HP Sump Pump With Level Control (MHP20399)

Ion Sump Pumps
SKU:
MHP20399
$630.59
$1,038.00
(You save $407.41 )
Bulk Pricing:

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 3 or above and get 3% off
(No reviews yet)
Weight:
32.00 LBS
Current Stock:
Adding to cart… The item has been added
Description

SH50i 1/2 HP Sump Pump With Level Control

  • 1/2 HP submersible sump pump with the versatility for pumping ground, surface, or effluent water with up to 3/4'' solids.
  • Rated at 30 GPM of pumping capacity (at 10' of head), suitable for basement sump, septic tank effluent, or dewatering applications.
  • Cast iron housing with 316 stainless steel motor shaft provides solid protection from wear and tear during routine or excessive use.
  • The Ion Switch controls pump without moving parts or contact points, eliminating the risk of mechanical failure commonly associated with conventional switches.

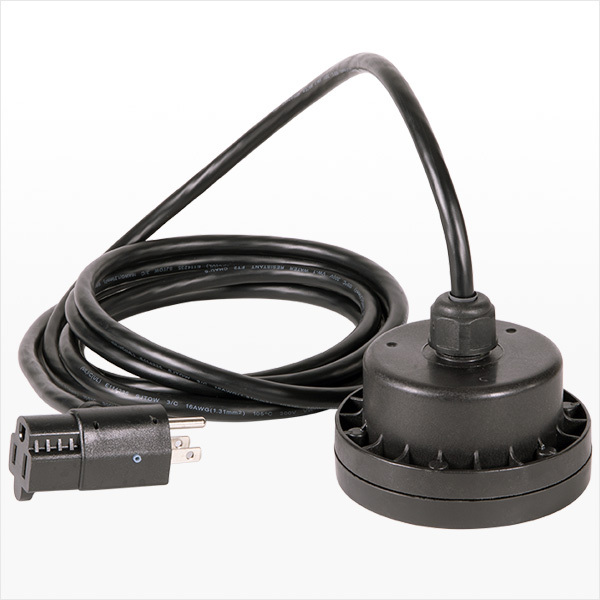

Ion Switch

Piggyback-style switch with no moving parts or contact points. Solid-state sensing enhances pump on/off control without the mechanical shortcomings of traditional float switches.

  • Proprietary digital level control first pioneered for residential sump and sewage pumps in 2010.
  • Extends average pump life with proven stationary design that out-performs mechanical switches.
 Ion Switch



Performance

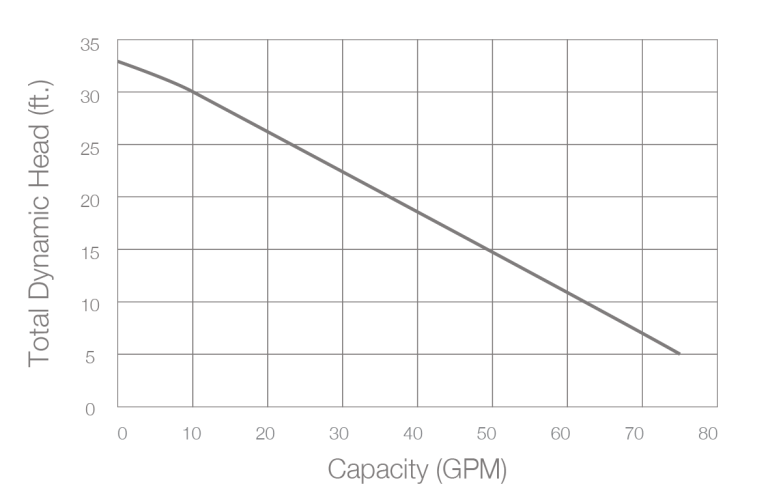

SH50i Pump Performance

Dimensions

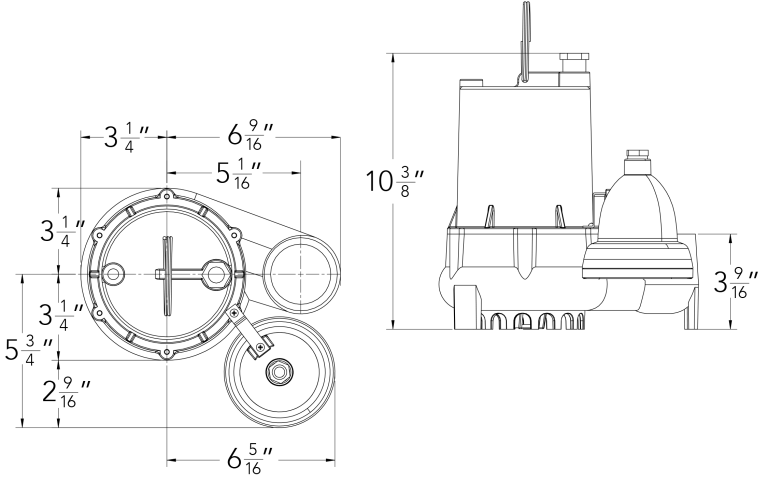

SH50i Demensions



Pump Features

  • Carbon ceramic mechanical seal
  • Oil-filled high efficiency PSC motor
  • Uses single-row ball-bearing construction
  • Piggy back Ion® digital level control switch has no moving parts (standard)
  • 3 year warranty









Operation Manual
  Sales Brochure

System Specifications

Typical Applications Basement Sump
Septic Tank Effluent
Dewatering
Maximum Capacity Up to 74 GPM
Maximum Head Up to 33‘
Electrical Data

115 V, 1 Ø, 8.5 FLA, 60 Hz
Motor Data 1/2 HP, 3450 RPM
Recommended Minimum Basin Size 18" x 24"
Automatic Operation i: Ion Digital Level Control (standard)
Materials of Construction cast iron
Impeller Non-clog vortex
Power Cord 20' Standard
Discharge 2″ NPT
Solids 3/4"
